| QD series air spring | | |  |
|
Product：

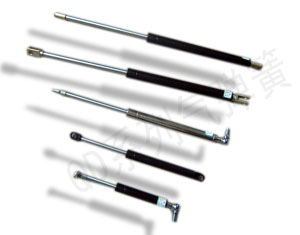

QD series air spring used in the automobile, spin the machine, printing, food, tobacco etc. on various kinds of machinery extensively, Movement of rising, suspend, close in act of realizing the doors and windows etc.
☆Product structure is simple, install and safeguard it conveniently.
☆Do not need external motive force while working, save the energy.
☆In the whole job journey, it is basically invariable that it lifts strength .
☆Journey terminal station, buffer the organization, avoid the damage of the member.
☆Can realize the stopover of the wanton position to promote the member to lift . |
Operation instructions：
☆This product belongs to the pressure goods, can't analyze , forbid colliding and beating .
☆Pay attention to installing the direction, can't invert .
☆In order to guarantee airtight dependability, can't destroy the cylinder rod surface , forbid applying the paint and chemical material,etc. on the cylinder rod.
☆Use environmental temperature：-35℃～+60℃。（Make specifically 80℃）
☆Install and unite the contact, should rotate flexibly , there can't be the card and hinder the phenomenon.
|
| |
|
|
|

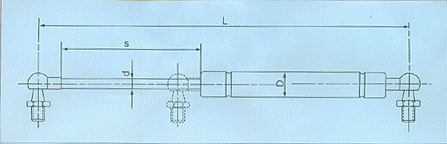

L
|
S
|
D
|
d
|
P(N)
|
|
QD16-1
|
290
|
70
|
18
|
8
|
150-450
|
|
QD16-2
|
310
|
105
|
|
QD16-3
|
320
|
100
|
|
QD16-4
|
360
|
120
|
|
QD16-5
|
405
|
155
|
|
QD16-6
|
480
|
180
|
|
QD16-7
|
500
|
200
|
|
QD16-8
|
580
|
225
|
|
QD19-1
|
280
|
85
|
|
QD19-2
|
440
|
125
|
|
QD19-3
|
490
|
210
|
|
QD19-4
|
500
|
180
|
|
QD19-5
|
540
|
185
|
|
QD19-6
|
560
|
210
|
|
QD19-7
|
585
|
220
|
|
QD19-8
|
610
|
230
|
|
QD19-9
|
620
|
250
|
|
QD19-10
|
640
|
260
|
|
QD19-11
|
675
|
225
|
|
QD19-12
|
680
|
270
|
|
QD19-13
|
700
|
200
|
|
QD19-14
|
725
|
240
|
|
QD19-15
|
725
|
255
|
|
QD25-1
|
660
|
220
|
|
QD25-2
|
705
|
220
|
|
QD25-3
|
715
|
220
|
|
QD25-4
|
735
|
220
|
|
QD25-5
|
740
|
220
|
|
QD25-6
|
760
|
250
|
|
QD25-7
|
780
|
240
|
|
QD25-8
|
845
|
300
|
|
QD25-9
|
880
|
260
|
|
QD25-10
|
900
|
300
|
|
|
|
QD16
|
QD19
|
QD25
|
d
|
M8
|
M8
|
M10
|
l1
|
28
|
29
|
39
|
l2
|
15
|
15
|
20
|
l3
|
19
|
19
|
22
|
|
|
| |
|
|
QD16
|
QD19
|
QD25
|
D1
|
6.5
|
6.5
|
8.5
|
D2
|
M8
|
M8
|
M10
|
l
|
24
|
24
|
30
|
h
|
8
|
8
|
12
|
|
|
| |
|
|
QD16
|
QD19
|
QD25
|
D
|
8.5
|
11
|
|
l1
|
8
|
18
|
|
l2
|
27
|
37
|
|
|
|
| |
|
|
QD16
|
QD19
|
QD25
|
D
|
|
8.5
|
11
|
d
|
|
M10
|
M10
|
l1
|
|
17
|
22
|
l2
|
|
10
|
10
|
h
|
|
8
|
10
|
|
|
| |
|
|
|
|
|
